CARTRIDGES AND COLLETS

Microconic Work Holding System

GAME CHANGING WORKHOLDING SYSTEM FOR SMALL PARTS

MASA MICROCONIC SYSTEM

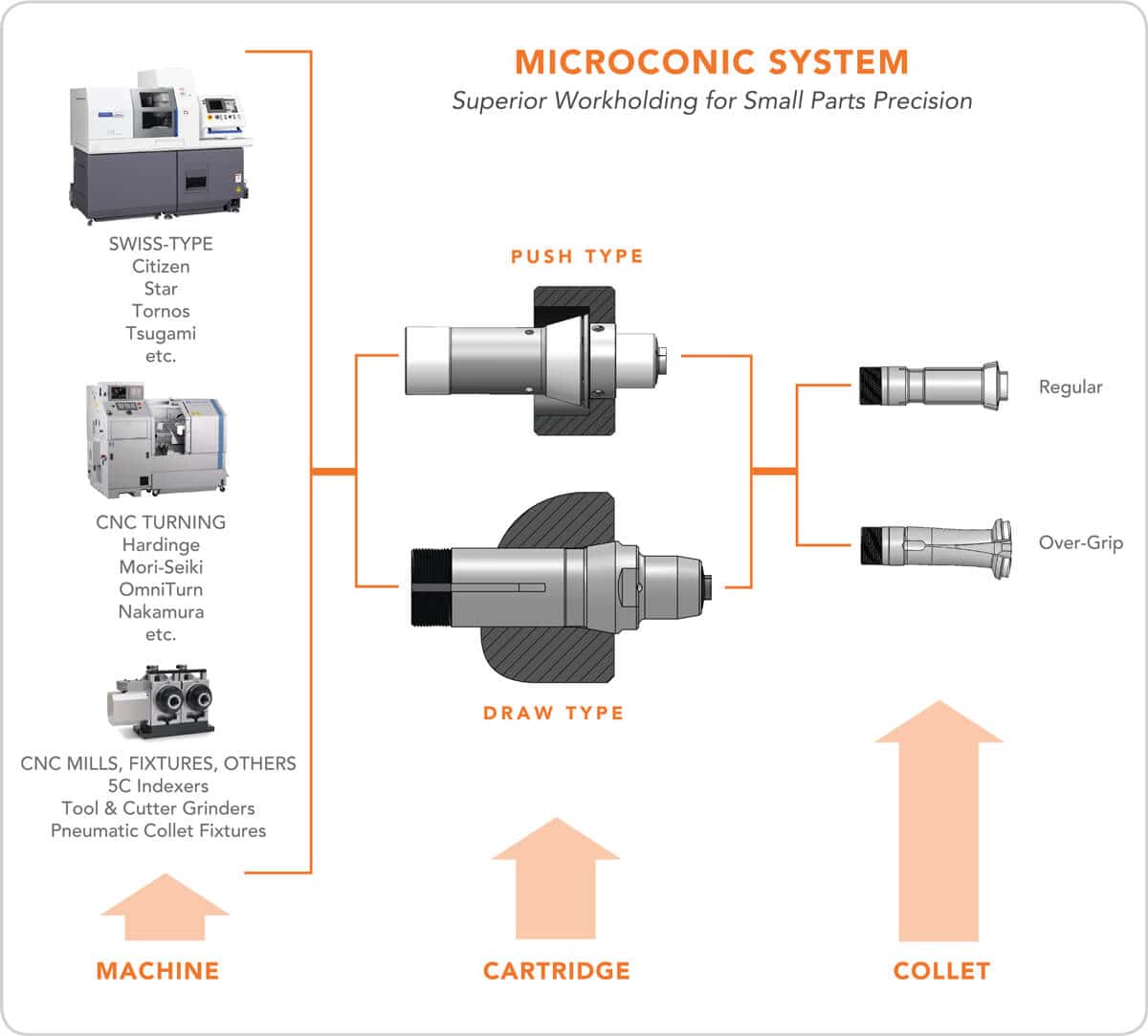

Masa Tool has developed the Microconic  system specifically for holding workpieces from Ø0.15mm to 10mm (Ø0.006” to 0.394”). The system consists of two major components:

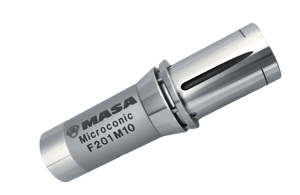

  • The Microconic cartridge, which fits into your CNC machine spindle without modification

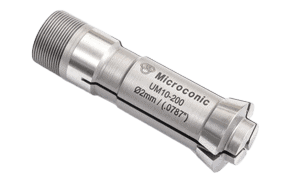

  • The Microconic collet, which fits in the Microconic cartridge.

The Microconic system has unsurpassed concentricity. It works with either draw-type or push-type standard collet systems that are in many machines.

The over-grip collet capabilities of the Masa Microconic System introduce a whole new world of time saving opportunities. They open up to an amazing 4mm (0.157”) diameter larger than the clamping diameter.

We designed our products and our production system to ensure that every component of the Microconic system ships within 2 days of order. 100% made in the USA.

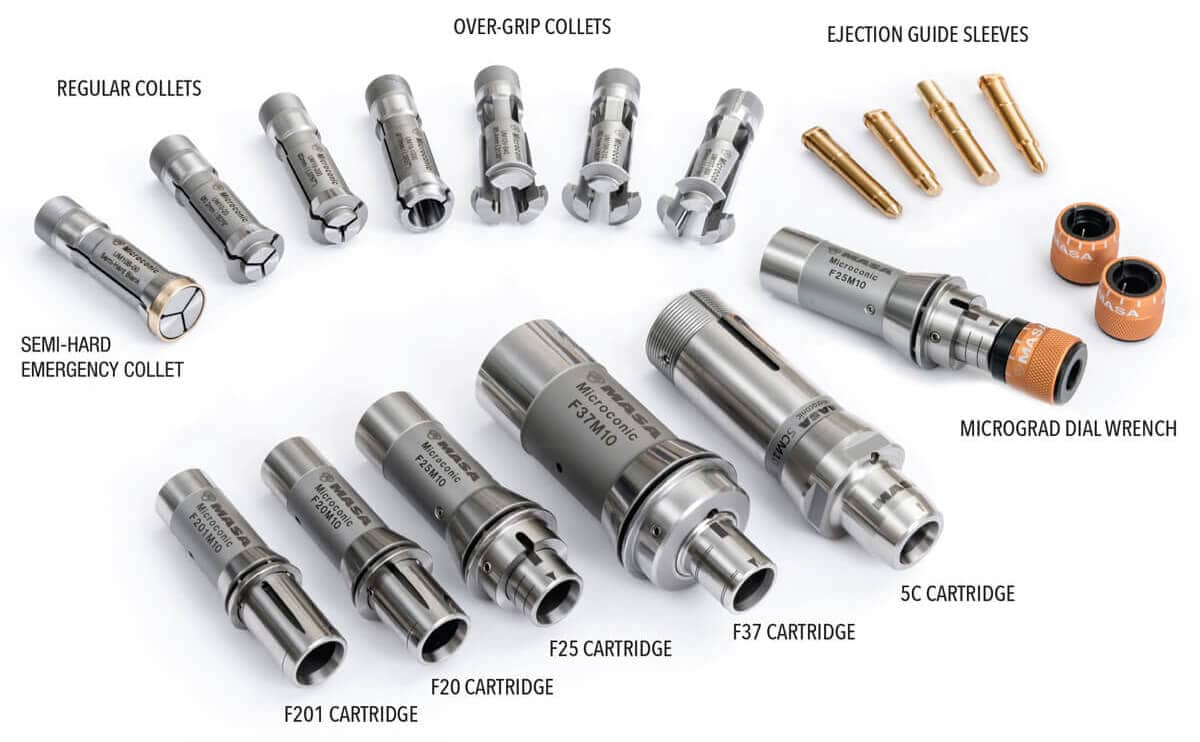

The Microconic system can do things that are impossible with traditional collets

THE MICROCONIC DIFFERENCE

  • The Microconic system consists of the cartridge, which fits in like a standard collet, and the Microconic collets which fit into our cartridge.
  • Accuracy – Concentricity guaranteed to 5μm (.0002”) runout.
  • Regular collets available from Ø0.15mm to 10mm (0.006”-0.394”).
  • Over-grip collets from Ø0.5mm-8.2mm (0.020”-0.323”).
  • Over-grip collets open up to 4mm (0.157”) diameter larger than the clamping diameter. See complete details in the table “Microconic Over-Grip Collets”.
  • Every Microconic collet fits in every Microconic cartridge, no matter which machine.
  • Every Microconic cartridge has an extended nose with unsurpassed rigidity and accuracy due to solid one-piece construction.
  • The Microconic cartridge can be used as a gauge to verify machine spindle accuracy under true working conditions.

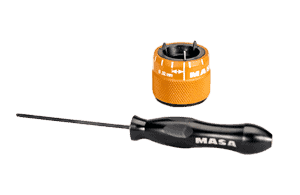

  • Micrograd™ Dial Wrench allows you to set your collet clamping force with calibrated precision. Now, even the most fragile parts can be held safely and firmly.
  • Microconic collets are hardened and precision ground to the highest quality standards.

The difference is unsurpassed rigidity.

Microconic system ships within 2 days of order.
