MICROCONIC OVER-GRIP COLLETS V-TYPE
Microconic Overgrip collet V-type is similar to W-type but optimized for larger diameter parts. V-type collets open about Ø3mm (.12”) larger than W-type.
From 15 minutes to 60 seconds for accurate set-up & changeover!
Converting a 16C to a 5C collet in a shop to gain an additional small-diameter clamping range usually results in a tolerance accumulation and generally takes over 15 minutes to change the collets.
By using our Microconic collets, once the cartridge is in place, you can easily install our collets and set the clamping pressure as you desire right at the spindle nose in about 60 seconds.
Microconic system ships within 2 days of order.
Showing 1 - 80 out of 80
Page 1 out of 1

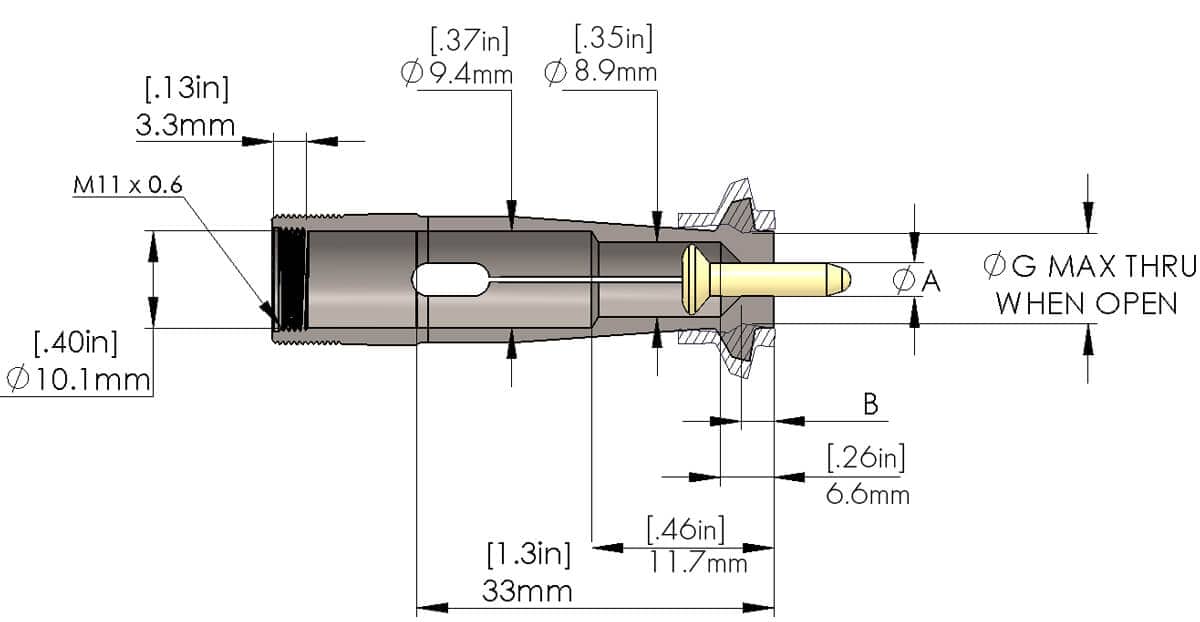

| Part # | Part Size Range ØA (mm) | Part Size Range ØA (in) | ØG max (mm) | ØG max (in) | B (mm) | B (in) | Action | |
|---|---|---|---|---|---|---|---|---|
UM10V-425 | 4.2 - 4.28 | .1653-.1685 | 6.8 | 0.26 | 4.3 | 0.17 | ||
UM10V-430 | 4.25 - 4.33 | .1673-.1705 | 6.9 | 0.27 | 4.3 | 0.17 | ||
UM10V-435 | 4.3 - 4.38 | .1693-.1725 | 6.9 | 0.27 | 4.3 | 0.17 | ||
UM10V-440 | 4.35 - 4.43 | .1712-.1744 | 7 | 0.27 | 4.3 | 0.17 | ||
UM10V-445 | 4.4 - 4.48 | .1732-.1764 | 7 | 0.27 | 4.6 | 0.18 | ||
UM10V-450 | 4.45 - 4.53 | .1752-.1784 | 7.1 | 0.27 | 4.6 | 0.18 | ||
UM10V-455 | 4.5 - 4.58 | .1771-.1803 | 7.1 | 0.27 | 4.9 | 0.19 | ||
UM10V-460 | 4.55 - 4.63 | .1791-.1823 | 7.2 | 0.28 | 4.9 | 0.19 | ||
UM10V-465 | 4.6 - 4.68 | .1811-.1843 | 7.2 | 0.28 | 4.9 | 0.19 | ||
UM10V-470 | 4.65 - 4.73 | .1830-.1862 | 7.3 | 0.28 | 4.9 | 0.19 | ||
UM10V-475 | 4.7 - 4.78 | .1850-.1882 | 7.3 | 0.28 | 4.9 | 0.19 | ||
UM10V-480 | 4.75 - 4.83 | .1870-.1902 | 7.4 | 0.29 | 4.9 | 0.19 | ||
UM10V-485 | 4.8 - 4.88 | .1889-.1921 | 7.4 | 0.29 | 4.9 | 0.19 | ||
UM10V-490 | 4.85 - 4.93 | .1909-.1941 | 7.5 | 0.29 | 4.9 | 0.19 | ||
UM10V-495 | 4.9 - 4.98 | .1929-.1961 | 7.5 | 0.29 | 4.8 | 0.19 | ||
UM10V-500 | 4.95 - 5.03 | .1949-.1981 | 7.6 | 0.29 | 4.8 | 0.19 | ||
UM10V-505 | 5 - 5.08 | .1968-.2000 | 7.6 | 0.29 | 4.8 | 0.19 | ||
UM10V-510 | 5.05 - 5.13 | .1988-.2020 | 7.7 | 0.3 | 4.8 | 0.19 | ||
UM10V-515 | 5.1 - 5.18 | .2008-.2040 | 7.7 | 0.3 | 4.8 | 0.19 | ||
UM10V-520 | 5.15 - 5.23 | .2027-.2059 | 7.8 | 0.3 | 4.8 | 0.19 | ||
UM10V-525 | 5.2 - 5.28 | .2047-.2079 | 7.8 | 0.3 | 4.8 | 0.19 | ||
UM10V-530 | 5.25 - 5.33 | .2067-.2099 | 7.9 | 0.31 | 4.8 | 0.19 | ||
UM10V-535 | 5.3 - 5.38 | .2086-.2118 | 7.9 | 0.31 | 4.8 | 0.19 | ||
UM10V-540 | 5.35 - 5.43 | .2106-.2138 | 8 | 0.31 | 4.8 | 0.19 | ||
UM10V-545 | 5.4 - 5.48 | .2126-.2158 | 8 | 0.31 | 5.1 | 0.2 | ||
UM10V-550 | 5.45 - 5.53 | .2145-.2177 | 8.1 | 0.31 | 5.1 | 0.2 | ||
UM10V-555 | 5.5 - 5.58 | .2165-.2197 | 8.1 | 0.31 | 5.1 | 0.2 | ||
UM10V-560 | 5.55 - 5.68 | .2185-.2217 | 8.2 | 0.32 | 5.1 | 0.2 | ||
UM10V-565 | 5.6 - 5.68 | .2204-.2236 | 8.2 | 0.32 | 5.1 | 0.2 | ||
UM10V-570 | 5.65 - 5.73 | .2224-.2256 | 8.3 | 0.32 | 5.1 | 0.2 | ||
UM10V-575 | 5.7 - 5.78 | .2244-.2276 | 8.3 | 0.32 | 5.1 | 0.2 | ||
UM10V-580 | 5.75 - 5.83 | .2263-.2295 | 8.4 | 0.33 | 5.1 | 0.2 | ||
UM10V-585 | 5.8 - 5.88 | .2283-.2315 | 8.4 | 0.33 | 5.1 | 0.2 | ||
UM10V-590 | 5.85 - 5.93 | .2303-.2335 | 8.5 | 0.33 | 5.1 | 0.2 | ||
UM10V-595 | 5.9 - 5.98 | .2323-.2355 | 8.5 | 0.33 | 5.3 | 0.21 | ||
UM10V-600 | 5.95 - 6.03 | .2342-.2374 | 8.6 | 0.33 | 5.3 | 0.21 | ||
UM10V-605 | 6 - 6.08 | .2362-.2394 | 8.6 | 0.33 | 5.3 | 0.21 | ||
UM10V-610 | 6.05 - 6.13 | .2382-.2414 | 8.7 | 0.34 | 5.3 | 0.21 | ||
UM10V-615 | 6.1 - 6.18 | .2401-.2433 | 8.7 | 0.34 | 5.3 | 0.21 | ||
UM10V-620 | 6.15 - 6.23 | .2421-.2453 | 8.8 | 0.34 | 5.3 | 0.21 | ||
UM10V-625 | 6.2 - 6.28 | .2441-.2473 | 8.8 | 0.34 | 5.3 | 0.21 | ||
UM10V-630 | 6.25 - 6.33 | .2460-.2492 | 8.9 | 0.35 | 5.3 | 0.21 | ||
UM10V-635 | 6.3 - 6.38 | .2480-.2512 | 8.9 | 0.35 | 5.3 | 0.21 | ||
UM10V-640 | 6.35 - 6.43 | .2500-.2532 | 9 | 0.35 | 5.3 | 0.21 | ||
UM10V-645 | 6.4 - 6.48 | .2519-.2551 | 9 | 0.35 | 5.3 | 0.21 | ||
UM10V-650 | 6.45 - 6.53 | .2539-.2571 | 9.1 | 0.35 | 5.6 | 0.22 | ||
UM10V-655 | 6.5 - 6.58 | .2559-.2591 | 9.1 | 0.35 | 5.6 | 0.22 | ||
UM10V-660 | 6.55 - 6.63 | .2578-.2610 | 9.2 | 0.36 | 5.6 | 0.22 | ||
UM10V-665 | 6.6 - 6.68 | .2598-.2630 | 9.2 | 0.36 | 5.6 | 0.22 | ||
UM10V-670 | 6.65 - 6.73 | .2618-.2650 | 9.3 | 0.36 | 5.6 | 0.22 | ||
UM10V-675 | 6.7 - 6.78 | .2637-.2669 | 9.3 | 0.36 | 5.6 | 0.22 | ||
UM10V-680 | 6.75 - 6.83 | .2657-.2689 | 9.4 | 0.37 | 5.6 | 0.22 | ||
UM10V-685 | 6.8 - 6.88 | .2677-.2709 | 9.4 | 0.37 | 5.6 | 0.22 | ||
UM10V-690 | 6.85 - 6.93 | .2697-.2729 | 9.5 | 0.37 | 5.6 | 0.22 | ||
UM10V-695 | 6.9 - 6.98 | .2716-.2748 | 9.5 | 0.37 | 5.6 | 0.22 | ||
UM10V-700 | 6.95 - 7.03 | .2736-.2768 | 9.6 | 0.37 | 5.8 | 0.23 | ||
UM10V-705 | 7 - 7.08 | .2756-.2788 | 9.6 | 0.37 | 5.8 | 0.23 | ||
UM10V-710 | 7.05 - 7.13 | .2775-.2807 | 9.7 | 0.38 | 5.8 | 0.23 | ||
UM10V-715 | 7.1 - 7.18 | .2795-.2827 | 9.7 | 0.38 | 5.8 | 0.23 | ||
UM10V-720 | 7.15 - 7.23 | .2815-.2847 | 9.8 | 0.38 | 5.8 | 0.23 | ||
UM10V-725 | 7.2 - 7.28 | .2834-.2866 | 9.8 | 0.38 | 5.8 | 0.23 | ||
UM10V-730 | 7.25 - 7.33 | .2854-.2886 | 9.9 | 0.38 | 5.8 | 0.23 | ||
UM10V-735 | 7.3 - 7.38 | .2874-.2903 | 9.9 | 0.38 | 5.8 | 0.23 | ||
UM10V-740 | 7.35 - 7.43 | .2893-.2925 | 10 | 0.396 | 5.8 | 0.23 | ||
UM10V-745 | 7.4 - 7.48 | .2913-.2945 | 10 | 0.396 | 5.8 | 0.23 | ||
UM10V-750 | 7.45 - 7.53 | .2933-.2965 | 10 | 0.396 | 6.1 | 0.24 | ||
UM10V-755 | 7.5 - 7.58 | .2952-.2984 | 10 | 0.396 | 6.1 | 0.24 | ||
UM10V-760 | 7.55 - 7.63 | .2972-.3004 | 10 | 0.396 | 6.1 | 0.24 | ||
UM10V-765 | 7.6 - 7.68 | .2992-.3024 | 10 | 0.396 | 6.1 | 0.24 | ||
UM10V-770 | 7.65 - 7.73 | .3011-.3043 | 10 | 0.396 | 6.1 | 0.24 | ||
UM10V-775 | 7.7 - 7.78 | .3031-.3063 | 10 | 0.396 | 6.1 | 0.24 | ||
UM10V-780 | 7.75 - 7.83 | .3051-.3083 | 10 | 0.396 | 6.1 | 0.24 | ||
UM10V-785 | 7.8 - 7.88 | .3071-.3103 | 10 | 0.396 | 6.1 | 0.24 | ||
UM10V-790 | 7.85 - 7.93 | .3090-.3122 | 10 | 0.396 | 6.1 | 0.24 | ||
UM10V-795 | 7.9 - 7.98 | .3110-.3142 | 10 | 0.396 | 6.1 | 0.24 | ||
UM10V-800 | 7.95 - 8.03 | .3130-.3162 | 10 | 0.396 | 6.4 | 0.25 | ||
UM10V-805 | 8 - 8.08 | .3149-.3181 | 10 | 0.396 | 6.4 | 0.25 | ||
UM10V-810 | 8.05 - 8.13 | .3169-.3201 | 10 | 0.396 | 6.4 | 0.25 | ||
UM10V-815 | 8.1 - 8.18 | .3189-.3221 | 10 | 0.396 | 6.4 | 0.25 | ||
UM10V-820 | 8.15 - 8.23 | .3208-.3240 | 10 | 0.396 | 6.4 | 0.25 |
