Bimu Quick change mini IK

Modular tool holders system with inner coolant

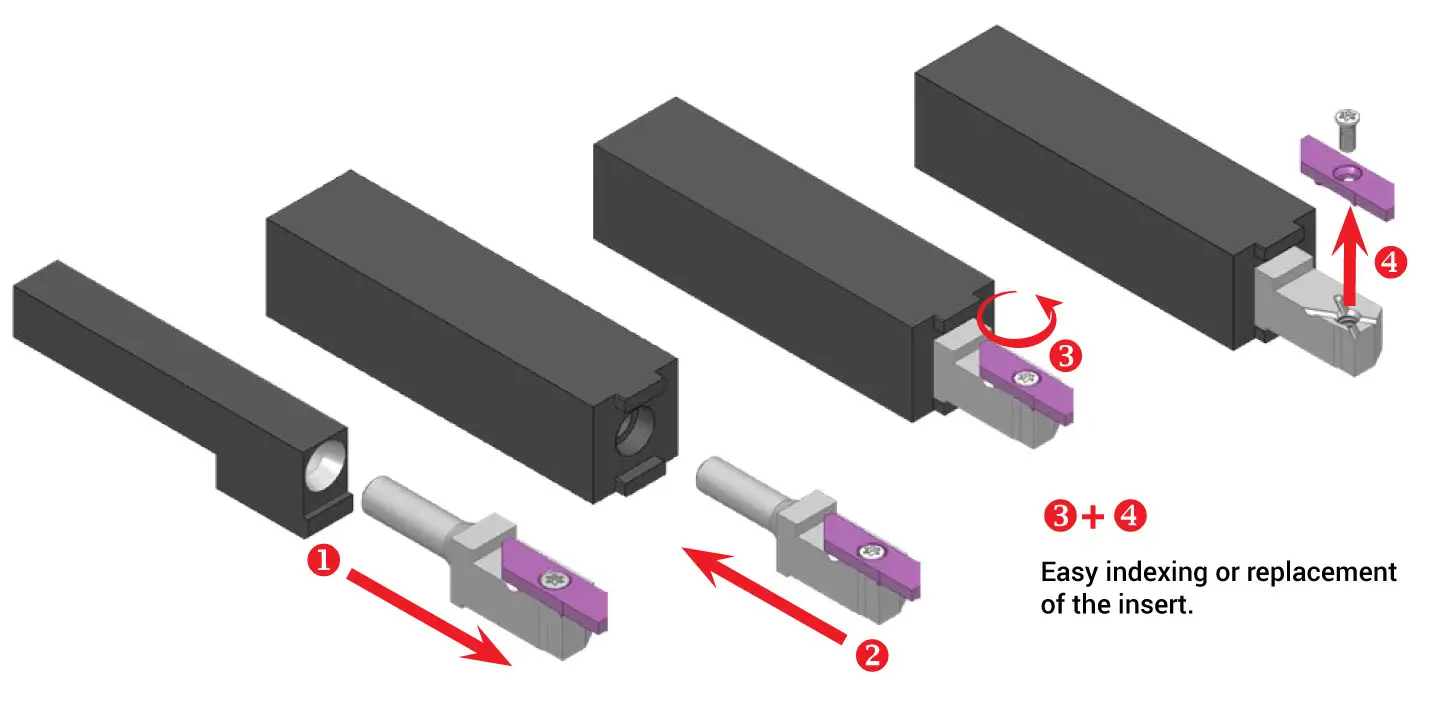

Quick change, without having to remove the tool holder from the gang!
Presetting is possible outside of the machine.

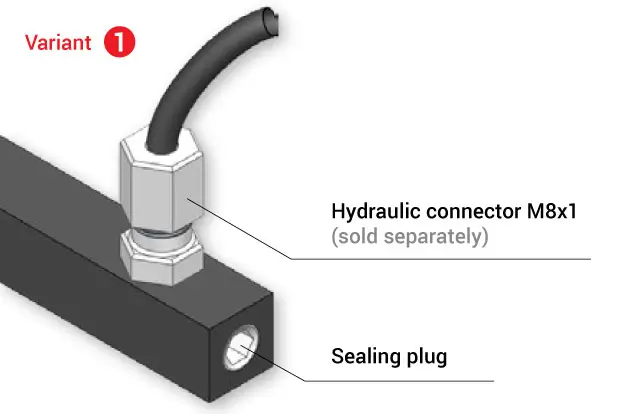

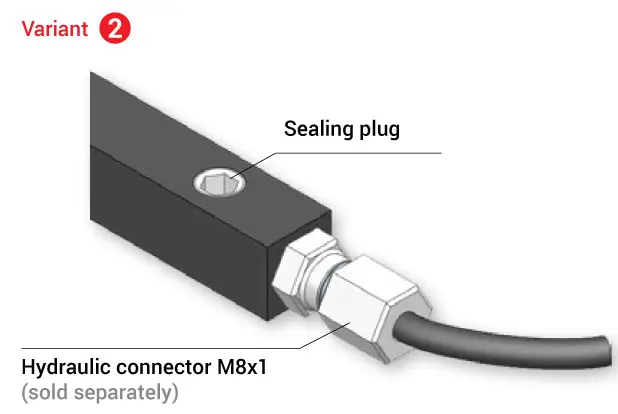

2 possible assemblies

Part #: QC8S 1212 IK

Shaft 12×12 mm, for right or left head, with internal coolant
(Hydraulic connector sold separately)

Part #: QC8H 1214 EB IK

Head 12×14 mm, right version, blank

Part #: QC8H 012R IK

Head 12×14 mm, right version, type 040line, with internal coolant

Part #: QC8H 012L IK

Head 12×14 mm, left version, type 040line, with internal coolant

Part #: QC8H 412R IK

Head 12×14 mm, right version, type 400line, with internal coolant

Part #: QC8H 812R IK

Head 12×14 mm, right version, type 800line, with internal coolant

Part #: QC8H 812L IK

Head 12×14 mm, left version, type 800line, with internal coolant

Part #: QC8H 812R4 IK

Head 12×14 mm, right «Pick-up» version, type 800line, with internal coolant

Part #: QC8H 1012L IK

Head 12×14 mm, left version, type OXOline 1000, with internal coolant

Part #: QC8H 1012R IK

Head 12×14 mm, right version, type OXOline 1000, with internal coolant

Part #: QC8H 1012R BO IK

Head 12×14 mm, right version, type OXOline 1000, with internal coolant

Part #: QC8H 3812R IK

Head 12×14 mm, right version, for insert type 340R5, with internal coolant

Part #: QC8H VPGT 12R IK

Head 12×14 mm, right version, type Multiturn Dec VPGT, with inner coolant

Part #: QC8H CC06 12R IK

Head 12×14 mm, right version, type ISOline CC06, with internal coolant

Part #: QC8H CC09 12R IK

Head 12×14 mm, right version, type ISOline CC09, with internal coolant

Part #: QC8H DC07 12R IK

Head 10×14 mm, right version, type ISOline DC07, with internal coolant

Part #: QC8H DC11 12R IK

Head 12×14 mm, right version, type ISOline DC11, with internal coolant

Part #: QC8H DC11 12N IK

Head 12×14 mm, neutral version, type ISOline DC11, with internal coolant

Part #: QC8H VC11 12R IK

Head 12×14 mm, right version, type ISOline VC11, with internal coolant

Part #: QC8H VC11 12L IK

Head 12×14 mm, left version, type ISOline VC11, with internal coolant

Part #: QC8H VC11 12N IK

Head 12×14 mm, neutral version, type ISOline VC11, with internal coolant

Part #: QC8H VC13 12R IK

Head 12×14 mm, right version, type ISOline VC13, with internal coolant

Part #: QC8H VC13 12N IK

Head 12×14 mm, neutral version, type ISOline VC13, with internal coolant

Part #: QC8S 1616 IK

Shaft 16×16 mm, for right or left head, with internal coolant (Hydraulic connector sold separately)

Part #: QC8H 1616 EB IK

Head 16×16 mm, blank

Part #: QC8H 016R IK

Head 16×16 mm, right version, type 040line, with internal coolant

Part #: QC8H 816R IK

Head 16×16 mm, right version, type 800line, with internal coolant

Part #: QC8H 1016R IK

Head 16×16 mm, right version, type OXOline 1000, with internal coolant

Part #: QC8H 1016R BO IK

Head 16×16 mm, right version, type OXOline 1000, with internal coolant

Part #: QC8H VPGT 16R IK

Head 16×16 mm, right version, type Multiturn Dec VPGT, with inner coolant

Part #: QC8H CC06 16R IK

Head 16×16 mm, right version, type ISOline CC06, with inner coolant

Part #: QC8H CC09 16R IK

Head 16×16 mm, right version, type ISOline CC09, with inner coolant

Part #: QC8H DC07 16R IK

Head 16×16 mm, right version, type ISOline DC07, with internal coolant

Part #: QC8H DC11 16R IK

Head 16×16 mm, right version, type ISOline DC11, with internal coolant

Part #: QC8H DC11 16N IK

Head 16×16 mm, neutral version, type ISOline DC11, with internal coolant

Part #: QC8H ER16 16R IK

Head 16×16 mm, right version, type ISOline ER16, helix angle β=0°

Part #: QC8H VC11 16R IK

Head 16×16 mm, right version, type ISOline VC11, with internal coolant

Part #: QC8H VC11 16L IK

Head 16×16 mm, left version, type ISOline VC11, with internal coolant

Part #: QC8H VC11 16N IK

Head 16×16 mm, neutral version, type ISOline VC11, with internal coolant

Part #: QC8H VC13 16R IK

Head 16×16 mm, right version, type ISOline VC13, with internal coolant

Part #: 100-10

Torque screwdriver (fixed setting 5 Nm) Recommended for an optimal control of the tightening of the interchangeable heads on tool holders 12×12 mm and 16×16 mm

Part #: 100-12

Bit Torx 20 for torque screwdriver For the tightening of the interchangeable heads

Part #: 100-13

Hexagon bit 5 mm for torque screwdriver For the tightening of wedges

Part #: 100-9

Standard screwdriver Torx 20

Part #: 100-15

Basic key Torx 20

Part #: 001-9

Replacement screw Torx 20 for shafts: QC8S 1212 IK , QC8S 1616 IK

Part #: 001-2

Replacement screw for heads: QC8H 012R IK, QC8H 012L IK, QC8H CC06 12R IK, QC8H 016R IK

Part #: 001-4

Replacement screw for heads: QC8H 412R IK, QC8H VC13 12R IK, QC8H VC13 12N IK, QC8H VC13 16R IK

Part #: 100-4

Replacement screw for heads: QC8H 812R IK, QC8H 812L IK, QC8H 812R4 IK, QC8H 816R IK

Part #: 001-8

Replacement screw for heads: QC8H 1012L IK, QC8H 1012R IK, QC8H 1012R BO IK, QC8H 1016R IK, QC8H 1016R BO IK

Part #: 100-3

Replacement screw for heads: QC8H 3812R IK

Part #: 001-7

Replacement screw for heads: QC8H VPGT 12R IK, QC8H DC07 12R IK, QC8H VC11 12R IK, QC8H VC11 12L IK, QC8H VC11 12N IK, QC8H VPGT 16R IK, QC8H CC06 16R IK, QC8H DC07 16R IK, QC8H VC11 16R IK, QC8H VC11 16L IK, QC8H VC11 16N IK

Part #: 100-21

Replacement screw for heads: QC8H CC09 12R IK, QC8H DC11 12R IK, QC8H DC11 12N IK

Part #: 100-16

Replacement screw for heads: QC8H CC09 16R IK, QC8H DC11 16R IK, QC8H DC11 16N IK

Part #: 100-2

Replacement screw for heads: QC8H ER16 16R IK

Part #: QC8A 2525

Accessorie for insert’s replacement Used to hold the head of the tool to facilitate the change of the insert.

To ensure a proper continuous « Quick change mini » system operation, Bimu recommends the monthly use of synthetic lubricant Blaser Foodtec® SAS 100 - Oil H1 or equivalent.
